    Supply Quick Hitch Coupler Suitable For All Brands Of Excavators

    Ask Lasest Price
    Brand Name : PA TECH
    Model Number : JX K-MINI, JXK-02, JXK-04,JXK-06, JXK-08, JXK-10, JXK-17
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 200-500 sets
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

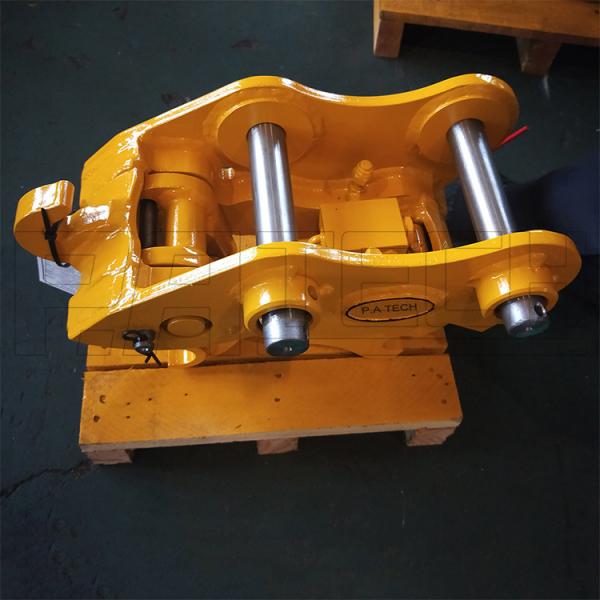

    Supply Quick Hitch Coupler Suitable For All Brands Of Excavators

    What is Quick Hitches Coupler, Excavator Fast Connector

    P.A tech supply Quick Hitch Coupler suitable for all brands of excavators, quick hitch are designed for a quick changeover of different excavator attachments including bucket, ripper, breaker and hydraulic shear, etc. P.A tech factory direct supply with 10+ years of production experience, P.A Tech offers a quick coupler solution for all brands of excavator from 1.5-45ton. Customers can choose among mechanical (1), hydraulic (2) or tilting couplers (3) to best suit their needs.

    Description of Quick Hitches Coupler, Excavator Fast Connector
    We produce two types of Quick Hitch Coupler , P type: the hook is pushed forward to grasp the upper shaft of the attachment, and H type: the hook is holding the upper shaft of the attachment backward. The Quich Hitch Coupler overall use of high-strength manganese plates and integrated structure processing, have lower failure rate than ordinary quick-change connector.

    Features of Quick Hitches Coupler, Excavator Fast Connector
    1) Integrative mechanical design of high strength manganese steel and structure is durable and suitable for assembly requirements of excavators of various tonnages.
    (2) Electric switches are installed in the cab to replace the high-cost oil pressure by electricity, which is convenient for the driver to operate.
    (3) Each cylinder is equipped with a hydraulic control one-way valve and a mechanical locking safety device to ensure that the fast connector can work normally when the oil circuit and circuit are cut off.
    (4) Each fast connector is equipped with safety pin protection system to ensure that the fast connector can work normally and play the role of "double insurance" when the oil cylinder of the fast connector fails.

    Supply P type, H Type Quick Hitch Coupler Matched Different Excavator Attachments

    Parameters of Quick Hitches Coupler, Excavator Fast Connector

    ModelUnitJX K-MINIJX K-02JX K-04JX K-06JX K-08JX K-10JX K-17
    Length Cmm300-450550-595581-610795-825888-980980-10601005-1150
    Height Gmm246312310388492574558-610
    Width Bmm175258-263270-280353-436449-483543-568606-663
    Pins Center Distance Dmm80-150230-270290-360380-420460-480473-540550-620
    Arm Width Amm80-140155-170180-200232-315306-340375-411416-469
    Cylinder Stroke Emm95-200200-300300-350340-440420-510460-560600-650
    Vertical Pins Center Dist Ancmm159200200260325385360
    Weightkg3060-7080-90220-250400-430500-650700-1000
    Working Pressurekg/cm²200200200200200200200
    Necessary Flowl/min10-2010-2010-2010-2010-2010-2010-20
    Excavatorton1.5-44-75-89-1917-2323-3033-45


    Supply Quick Hitch Coupler suitable for all brands of excavators

    Packing & Delivery of Quick Hitches Coupler, Excavator Fast Connector


    Workshop Show of Quick Hitches Coupler, Excavator Fast Connector

    Supply Quick Hitch Coupler suitable for all brands of excavators

    Factory Show of Quick Hitches Coupler, Excavator Fast Connector


    Our Service:
    1-- Six months warranty of products.
    2-- Online consultation and answering.
    3-- Free customization.
    4-- Delivery within 15 days.


    Supply Quick Hitch Coupler suitable for all brands of excavators
    Excavator attachments 10+ years factory direct supply: Quick hitch coupler, log grapple, Demolition shear, Excavator Scrap Shear, tooth ripper, etcf.
